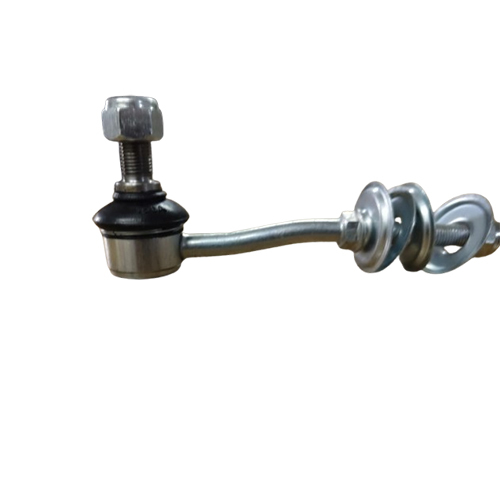

Suspension ball joint

About Suspension ball joint

A suspension ball joint is a spherical bearing that connects the control arm to the steering knuckle, allowing for multi-directional movement while maintaining a tight, controlled connection. Essentially, it acts as a pivot point, enabling the wheel and suspension to move up and down, and the wheel to steer left and right, all while keeping the assembly securely together.

Here's a more detailed breakdown:

Key Components and Function:

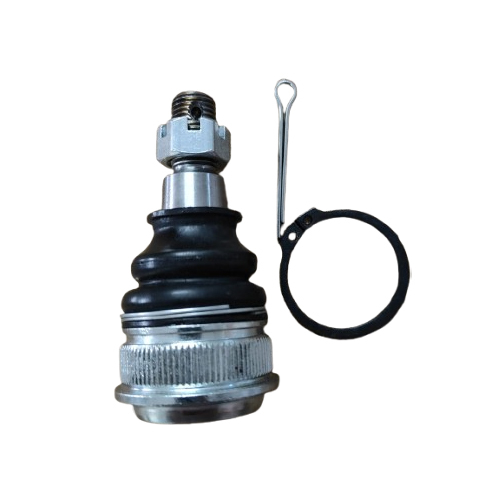

• Ball and Socket Design: The core of the ball joint is a hardened steel ball stud (the "ball") encased within a steel housing (the "socket"). This allows the ball to rotate and pivot freely within the socket.

• Lubrication: The internal components are typically lubricated with grease to reduce friction and wear. This grease is held in by a protective rubber boot.

• Protective Boot (Dust Boot): This flexible rubber or synthetic boot seals the ball joint, preventing dirt, water, and debris from entering the internal mechanism and contaminating the grease, which would lead to premature wear. It also keeps the grease inside.

• Stud and Taper: The ball stud typically has a tapered end that fits securely into a corresponding tapered hole in the steering knuckle, held in place by a castellated nut and cotter pin.

• Housing: The outer housing of the ball joint is designed to be pressed into or bolted onto the control arm (either upper or lower, depending on the suspension design).

Purpose and Importance:

• Pivot Point: The primary function is to provide a flexible pivot point for the steering and suspension system.

• Steering Control: It allows the steering knuckle (and thus the wheel) to turn left and right, enabling the vehicle to be steered.

• Suspension Movement: It accommodates the vertical movement of the wheel as the suspension absorbs bumps and undulations in the road.

• Maintains Wheel Alignment: A healthy ball joint helps maintain proper wheel alignment angles, which is crucial for safe handling, tire wear, and steering stability.

• Safety Critical: Ball joints are safety-critical components. A worn or failed ball joint can lead to a loss of steering control, uneven tire wear, clunking noises, and in severe cases, the wheel detaching from the vehicle.

Types:

While the basic principle is the same, ball joints can be categorized by their location and design:

• Upper Ball Joint: Connects the upper control arm to the steering knuckle.

• Lower Ball Joint: Connects the lower control arm to the steering knuckle.

• Load-Carrying Ball Joint: Bears the weight of the vehicle and absorbs suspension forces.

• Follower Ball Joint: Primarily acts as a pivot point and does not carry the main vehicle load.

• Serviceable vs. Non-Serviceable: Some ball joints have a grease fitting (zirk fitting) for periodic lubrication, while others are "sealed for life" and do not require maintenance.

Signs of Wear and Failure:

• Clunking or Popping Noises: Especially when going over bumps or turning.

• Loose or Wandering Steering: The vehicle may feel less precise or wander on the road.

• Uneven Tire Wear: Particularly on the edges of the tire.

• Vibration: Can be felt through the steering wheel or floor.

• Vehicle Pulling to One Side: Can indicate a worn ball joint on that side.

• Visible Damage to the Boot: A torn or cracked boot allows contaminants in, accelerating wear.
